Aggregate Testing Equipments
Leading Manufacturers, Exporters, Wholesaler, Retailer of Aggregate Crushing Value Apparatus, Aggregate Impact Tester with Blow Counter, CYLINDRICAL MEASURES, Deval Attrition Tester, Dorry Abrasion Testing Machine, Los Angeles Abrasion Testing Machine, SPECIFIC GRAVITY AND WATER ABSORPTION OF AGGREGATES, Thickness Gauge and Tile Abrasion Testing Machine from Delhi.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | MSI |
| Material | Mild Steel |
| Power | manual |
| Product Code | MSI 5014 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : IS 2376 (PART-IV) & BS 812:111
For Measuring of Resistance of Aggregate to Crushing.
Specification: The Aggregate Crushing Value (ACV) test set provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Each set consists of steel cylinder, plunger, base plate, cylindrical measure and tamping rod. All parts of the apparatus are powder coated or galvanized steel, heat treated and ground before manufacturing to make it durable and reliable. Specification: Consists of M.S. Cylindrical Container 150mm +/-0.5mm dia x 130mm to 140mm high with base plate 200 to 230mm/sqr x 6mm thick. A Plunger of 148mm +/-0.5mm dia x 100 to 115mm high. Supplied complete with Tamping Rod, 16mm dia x 600mm long, both ends rounded. Metal Measure 115+/- 0.5mm dia x 180 +/- 0.5mm high.
Note: On Special Request Aggregate Crushing Value Apparatus having 75mm dia or 300mm dia cylinder size can be supplied.
| Business Type | Manufacturer, Exporter, Supplier |
| Automation Grade | Manual |
| Material | Mild Steel |
| Product Code | MSI 5015 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : IS 2386 (PART IV) 9377 & BS 812:112
It is robustly designed to determine the aggregate impact value (AIV) of aggregates which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The counter fitted to the machine automatically records the number of blows delivered to the sample, manufactured from heavy duty plated steel to resist corrosion. Specification: The instrument consists of a circular base with Two vertical guides. The Hammer of weight 13.75 +/-0.25kg can be raised to fall freely down the vertical guides. The Height of fall can be adjusted through 380 +/- 5mm. The Hammer is provided with a locking arrangement. The hammer falls freely to the base and is removable for employing. Supplied complete with metal measure 75mm dia x 50mm high (For specimen preparation) and Tamping Rod 230mm long x 10mm diameter. A Blow Counter to count the number of strokes is fitted on top of the equipment.
| Business Type | Manufacturer, Exporter, Supplier |
| Product Code | MSI 5008 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : IS 2386 (PART-III) & BS 812
Specification: It Determines Bulk Density or unit weight of aggregates. It consists of a Calibrated Cylindrical Measures of sheet iron with handles.
Capacities available 3, 5, 7, 10, 15, 20 & 30 liters.
Complete with One Tamping Rod 16mm dia x 600mm long both ends rounded.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | MSI |
| Feature | Durable, High Accuracy, Low Maintainance, Rustproof, Stable Performance |
| Voltage | 220V |
| Product Code | MSI 5021 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |

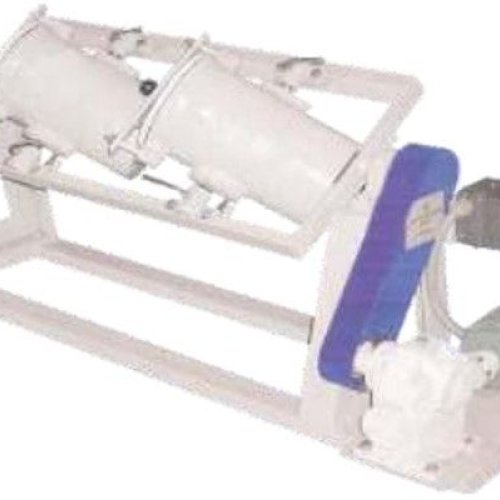

Standard Used : ASTM D2-33 & IS 2386 (PART IV)
Used for The Determination of Resistance of Aggregates to Wear by Abrasion.
Specification: It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end. These cylinders are mounted an a shaft at angle of 300 with the axis of rotation of the shaft. The shaft rotates at 30-33 RPM. Through a reduction gear operated by a motor and is provided with a revolution counter. Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of 48mm dia. Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply. Note : Option of Digital Preset Counter can be provided at an Extra Cost
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | MSI |
| Material | Mild Steel |
| Driven Type | Electric |
| Voltage | 220V |
| Color | White, Light White, Grey |
| Product Code | MSI 5020 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : BS 812
Used for Testing Aggregates for Resistance to Abrasion.
Specification: It consists of a disc rotating about a shaft connected to a reduction gear box coupled to a motor. The disc rotates at 28-30 RPM. Under the rotating disc is a tray with an outlet to facilitate the removal of sand. Two Conical Hoppers are mounted on a bracket fixed to the circular tray. An arrangement is made for start and stop the flow of sand. Two containers with weights are supplied to keep the specimens pressed against the rotating disc. Suitable for operation on 220 V, 50 cycles, A.C. Supply.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Color | Blue,White |
| Condition | New |
| Automatic Grade | Automatic |
| Power | 1-3kw |
| Application | Testing |
| Voltage | 220V, 440V |
| Type | Abrasion Tester |
| Country of Origin | India |
Preferred Buyer From
| Location | Anywhere in India |
LOS ANGELES ABRASION TESTING MACHINE
IS 2386 (PART IV) ASTM C 131, AASHTO T-96
Used for testing Crushed Rock, Crushed Slag, Crushed and Uncrushed Gravel For Resistance to Abrasion.
Specification:
The machine consists of a hollow cylinder mounted horizontally on a study frame on ball bearings. There is an opening which can be closed with a dust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy reduction gear at a speed of 30-33 R.P.M. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test. Complete with Abrasive Charge consisting of a set of Twelve hardened steel balls, approximately
| Business Type | Manufacturer, Exporter, Supplier |
| Product Code | MSI 5010 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : IS 2386 (PART III) & BS 812
The buoyancy balance system consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory
Specification: The outfit comprises of
Electronic balance, capacity 10 kg. Least Count 0.1gm, provision is made in this balance to suspend density basket under material pan. This balance is mounted on an angle iron frame stand.
Density basket.
Air tight container to suspend density basket.
GI Tray of area not less than 650 cm sq.
Absorbent cloths 75cm x 45cm.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Steel |
| Shape | Rectagular |
| Condition | New |
| Automatic Grade | Manual |
| Application | Measuring Material Thickness |
| Product Code | MSI 5001 |
| Payment Terms | D/P, T/T |
Preferred Buyer From
| Location | Anywhere in India |
Standard Used : IS 2386 (PART-1) & BS 812
Specification: Used for determining the Flakiness Index of Aggregates. It Consists of a frame with a sliding panel. The Panel has slots of Different Standard Lengths and Widths accurately Cut.
| Business Type | Manufacturer, Exporter, Supplier |
| Warrenty | 1year |
| Country of Origin | India |
| Type | Tile Abrasion Testing Machine |
| Automatic Grade | Semi Automatic |
| Condition | New |
| Driven Type | Electric |
| Brand Name | MSI |
| Color | Grey |
| Product Code | MSI 5024 |
| Payment Terms | T/T |
| Packaging Details | Wooden Box |
Preferred Buyer From
| Location | Anywhere in India |

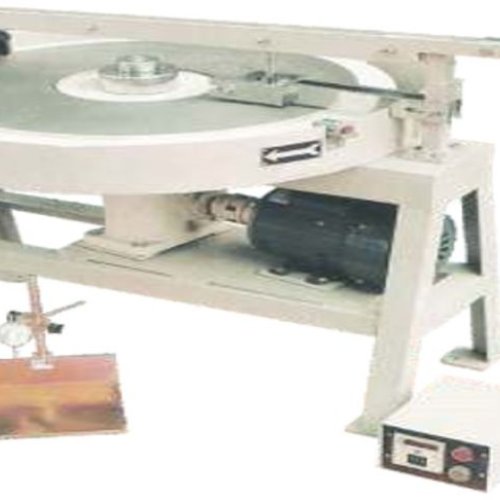

IS 1237, IS 1706 Specification:
This is used for determination of resistance to wear for Cement & Concrete flooring tiles.
Tiles specimen of size 7.06 cm x 7.06 cm is pressed face-wise under specific load on a grinding
path and abrasive powder is evenly spread on the rotating grinding disc the second parallel
side of the tile is subjected to wear for similar number of rotations. The wear of the tile is
measured on a thickness gauge specifically made for the purpose. The machine consists of a
disc rotating at a speed of 30 R.P.M. in a circular tray. A bracket is provided to hold the
specimen. A counter balance lever loads the specimen. Load applied is 30 Kgf. A funnel is
fitted to evenly spread abrasive powder on the grinding path. A Pre-set Counter
automatically stops the machine after 22 revolutions. This counter is Re-adjustable. The
machine works on 440 V A.C. Three Phase electrical supply. On request machine to operate
on 230 V A.C. Supply can also be supplied.
